NEMA 23

NEMA 23 Stepper Motor 56.4x56.4mm (2.22x2.22in) holding torque up to 3Nm (425oz-in)

Documents

Related Products

Stepper Drives Stepper Drives
  • Fast mounting on DIN rail
  • Integrated oscillator
  • Low-cost versions
  • Up to 3000rpm at 1/128 steps/rev
  • 32bit mathematical functions
  • FREE programming software!

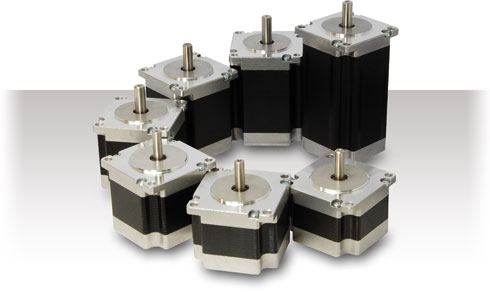

NEMA 23 NEMA23 stepper motors in seven different power sizes with torque up to 3Nm (425oz-In) always maintaining the flange in standard NEMA23.

Some models are offered with two different wirings to best fit in the application.

The motor shaft can be supplied with a diameter of 6,35mm (0,250In) or 8mm (0,315In) with flattening (recommended for motors with torque over 1,5Nm 213In).

The models M1233070 and M1233071 supply the highest torque amongst the motors with NEMA23 flange available on the market.

Family Overview

A wide range of stepper motors available from stock characterized by high torque, compact size and competitive price.

LAM Technologies offers high quality … »read more

Products

NEMA 23 motors with Encoder NEMA 23 motors with Encoder
  • High linearity encoder
  • Zero pulse (also called Index pulse)
  • Line driver outputs
M1233011 M1233011
  • Torque 0.55Nm (77oz-In)
  • Current 0.62Arms
  • NEMA 23 standard flange
M1233012 M1233012
  • Torque 0.55Nm (77oz-In)
  • Current 2Arms
  • NEMA 23 standard flange
M1233021 M1233021
  • Torque 0.8Nm (113oz-In)
  • Current 0.62Arms
  • NEMA 23 standard flange
M1233022 M1233022
  • Torque 0.8Nm (113oz-In)
  • Current 2.5Arms
  • NEMA 23 standard flange
M1233031 M1233031
  • Torque 1Nm (142oz-In)
  • Current 0.62Arms
  • NEMA 23 standard flange
M1233032 M1233032
  • Torque 1.1Nm (156oz-In)
  • Current 2.5Arms
  • NEMA 23 standard flange
M1233041 M1233041
  • Torque 1.1Nm (156oz-In)
  • Current 4.2Arms
  • NEMA 23 standard flange
M1233051 M1233051
  • Torque 1.4Nm (198oz-In)
  • Current 3Arms
  • NEMA 23 standard flange
M1233061 M1233061
  • Torque 1.8Nm (255oz-In)
  • Current 3Arms
  • NEMA 23 standard flange
M1233062 M1233062
  • Torque 1.8Nm (255oz-In)
  • Current 4.2Arms
  • NEMA 23 standard flange
M1233064 M1233064
  • Torque 1.8Nm (255oz-In)
  • Current 6Arms
  • NEMA 23 standard flange
M1233070 M1233070
  • Torque 3Nm (425oz-In)
  • Current 4.2Arms
  • NEMA 23 standard flange
M1233071 M1233071
  • Torque 3Nm (425oz-In)
  • Current 6Arms
  • NEMA 23 standard flange
