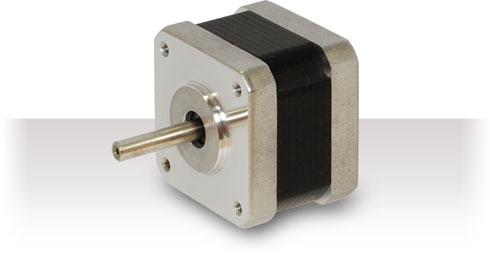

M1173020

NEMA17 Stepper Motor 0.28Nm (39oz-in) 0.7Arms L=34mm (1.34in)

Documents

Related Products

DS1041 DS1041
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 100x17.5x119mm (3.94x0.69x4.69in)
LS1041 LS1041
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 78x110x25mm (3.07x4.33x0.98in)
DS3041 DS3041
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 100x17.5x119mm (3.94x0.69x4.69in)
DS5041 DS5041
  • Modbus-RTU fieldbus RS485
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 100x22.7x119mm (3.94x0.89x4.69in)
USD10361 USD10361
  • Power supply from 12Vdc up to 42Vdc
  • Current up to 1.2Apk
  • STEP and DIRECTION control
  • Mictrostepping with change of the resolution on the fly
USD50361 USD50361
  • Power supply from 12Vdc up to 42Vdc
  • Current up to 1.2Apk
  • Integrated Indexer serially controllable
  • Mictrostepping with change of the resolution on the fly
M1173020 Three different sizes of NEMA17 stepper motors able to provide holding torque of more than 0.28Nm (39oz-In).

Upon request it is possible to realize versions with double … »read more

Technical Data

Bipolar Holding Torque 0.28Nm (39oz-in)
Bipolar Phase Current 0.7Arms
Rotor Inertia 34g-cm2 (0.186oz-in2)
Length 34mm (1.34inches)
Weight 240g (8.47oz)
Flange NEMA 17 42.3x42.3mm (1.67x1.67inches)
Leads Number 4
Full step angle 1.8°

Torque curve

The graph display is reserved for registered users only.
Please register or login to display graphs.

Benefits

  • High torque density
  • Optimized for microstepping drive
  • Excellent dynamic performance
  • Double shaft versions available
