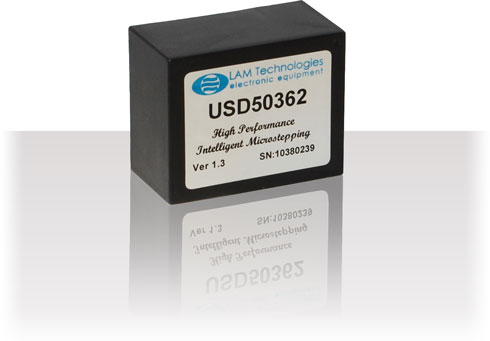

The USD modules are bipolar stepper motor drives designed for PCB mounting.
They represent the perfect solution to save space and remove the cables as perfectly integrable with the electronics … »read more
Technical Data
| Power Supply Voltage | From 12Vdc up to 42Vdc |
| Phase current | From 0.3Apk up to 2.4Apk |
| Logic Supply Voltage | 5Vdc |
| Control Mode | Streaming via serial line and proprietary protocol |
| Special Features | TXON output for automatic RS485 flow control. Deferred execution of movements by Hardware Trigger |
| Digital Inputs | 2 TTL/CMOS compatible: ENABLE, RESET
8 TTL/CMOS compatible: RX, TX, TXON, ADD0, ADD1, ADD2, ADD3, ADD4
3 bidirectional TTL/CMOS compatible: IO0, IO1, IO2
2 analog for the phase current setting |
| Digital Outputs | 1 open collector: FAULT
3 bidirectional TTL/CMOS compatible: IO0, IO1, IO2 |
| Step subdivision | Selectable from full step to 1/128 step or automatic mode |
| Protections, Alarms and Diagnostics | Over and under voltage, short circuit phase to phase, phase to ground, phase-positive |
| Connections | Via solder pins |
| Dimensions | 44.5(H) x 55(L) x 28.5(W) mm
1.75(H) x 2.17(L) x 1.12(W) inches |
| Weight | 120g
4.23oz |
Benefits
- Compact size
- Up to 32 drives controllable by a single serial line
- 3 I/O available for different uses
- Resolution up to 25600 steps/rev
- Change the resolution on the fly
- TTL / CMOS microcontroller compatible
- Internal pull-up resistors on each input
- IP65 protection degree
