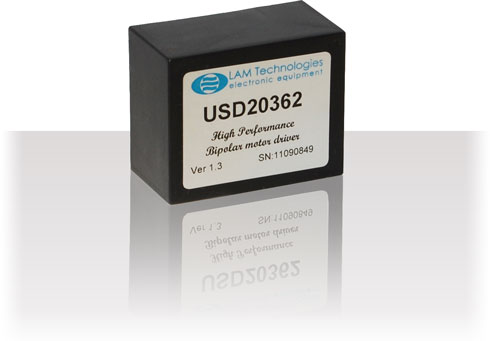

The USD modules are bipolar stepper motor drives designed for PCB mounting.
They represent the perfect solution to save space and remove the cables as perfectly integrable with the electronics … »read more
Technical Data
| Power Supply Voltage | From 12Vdc up to 42Vdc |
| Phase current | From 0.3Apk up to 2.4Apk |
| Logic Supply Voltage | 5Vdc |
| Control Mode | Step and Direction |
| Digital Inputs | 5 TTL/CMOS compatible: STEP, DIRECTION, ENABLE, STANDBY, RESET
3 TTL/CMOS compatible: RS0, RS1, RS2 for the resolution setting
2 analog for the phase current setting |
| Digital Outputs | 1 open collector: FAULT |
| Step subdivision | Selectable from full step to 1/2 step |
| Protections, Alarms and Diagnostics | Over and under voltage, short circuit phase to phase, phase to ground, phase-positive |
| Connections | Via solder pins |
| Dimensions | 44.5(H) x 55(L) x 28.5(W) mm
1.75(H) x 2.17(L) x 1.12(W) inches |
| Weight | 120g
4.23oz |
Benefits
- Compact size
- Change the resolution on the fly
- TTL / CMOS microcontroller compatible
- Internal pull-up resistors on each input
- IP65 protection degree
- Low cost
