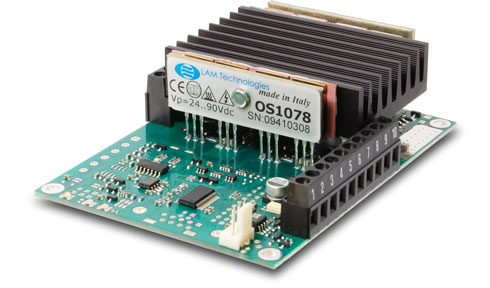

The OS10 step motor driver series are realized in open design, with IP00 protection, and are very small sized despite the high power they can manage (they reach working voltages of 90Vdc and
… »read more Technical Data
| Power Supply Voltage | From 24Vdc up to 90Vdc |
| Phase Current | From 4Arms up to 10Arms in increments of 0.1Arms |
| Control Mode | Step and Direction. Start/Stop |
| Digital Inputs | 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST
Operating from 3V up to 28V at constant current
Each one NPN, PNP or Line Drive compatible |
| Step subdivision | Microstepping. Selectable from full step to 1/128 step |
| STEP Max Frequency | 300KHz |
| Protections, Alarms and Diagnostics | Over and under voltage, thermal, Phase Motor interrupted
Short circuit phase to phase, phase to ground, phase-supply
Univocal indication for each anomaly
|
| Connections | By terminal block. Section of cable up to AWG14 |
| Dimensions | 29(H) x 105(L) x 78(W) mm
1.14(H) x 4.13(L) x 3.07(W) inches |
| Weight | 180g
6.4oz |
Benefits
- Compact size
- Resolution up to 25600 steps/rev
- Integrated oscillator
- Gate function for the control of several drives with a single STEP source
- Damping of resonances
- Power output stage at high efficiency
- Digital I/O signal conditioning
- Low cost
