OS10 series

Step and Direction, panel mounting, stepper motor drives

Related Products

UDP30 UDP30
  • Galvanic isolation
  • Drivers from Windows 98SE to Windows 10 32bit or 64bit
  • Powered via USB port
UDP Commander UDP Commander
  • Running under Windows
  • Simple and intuitive use
  • Single tool for all drives xS10, DS30 and DS5x
  • Free!
DP1 serie DP1 serie
  • Single or three phase input
  • Braking resistor control
  • Fast mounting on DIN rail

Matching motors

NEMA 17 NEMA 17
  • NEMA 17 standard flange
  • Torque up to 0.75Nm (106oz-In)
  • Current from 0.7Arms up to 2.5Arms
NEMA 23 NEMA 23
  • NEMA 23 standard flange
  • Torque up to 3Nm (425oz-In)
  • Current from 0.62Arms up to 6Arms
NEMA 24 NEMA 24
  • NEMA 24 standard flange
  • Torque up to 3.2Nm (453oz-In)
  • Current from 4.2Arms up to 6Arms
NEMA 34 NEMA 34
  • NEMA 34 standard flange
  • Torque up to 12Nm (1416oz-In)
  • Current from 2.8Arms up to 10Arms
NEMA 42 NEMA 42
  • NEMA 42 standard flange
  • Torque up to 29Nm (4107oz-In)
  • Current from 5Arms up to 10Arms

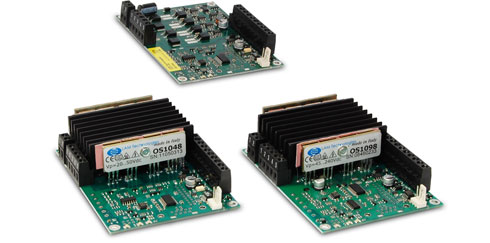

OS10 series The OS10 step motor driver series are realized in open design, with IP00 protection, and are very small sized despite the high power they can manage (they reach working voltages of 240Vdc and phase current of 10Arms, equivalent to 14Apk or 14Imax).

The 4 holes at the corners of the board allow the mounting of the drive.

The connection of the signal and power cables are made easier by the numbered screw terminals, able to contain cables with section up to 2,5mm2 .

Family Overview

Maximum reliability, high performance, small footprint and low cost are the guidelines followed in the design of the stepper motor drives belonging to the xS10 series .

The»read more

Products

OS1041 OS1041
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 18x105x78mm (0.71x4.13x3.07in)
OS1044 OS1044
  • Supply from 20Vdc up to 50Vdc
  • Current up to 4Arms
  • 18x105x78mm (0.71x4.13x3.07in)
OS1048 OS1048
  • Supply from 20Vdc up to 50Vdc
  • Current up to 8Arms
  • 29x105x78mm (1.14x4.13x3.07in)
OS1073 OS1073
  • Supply from 24Vdc up to 90Vdc
  • Current up to 3Arms
  • 18x105x78mm (0.71x4.13x3.07in)
OS1076 OS1076
  • Supply from 24Vdc up to 90Vdc
  • Current up to 6Arms
  • 29x105x78mm (1.14x4.13x3.07in)
OS1078 OS1078
  • Supply from 24Vdc up to 90Vdc
  • Current up to 10Arms
  • 29x105x78mm (1.14x4.13x3.07in)
OS1084 OS1084
  • Supply from 45Vdc up to 160Vdc
  • Current up to 4Arms
  • 29x105x78mm (1.14x4.13x3.07in)
OS1087 OS1087
  • Supply from 45Vdc up to 160Vdc
  • Current up to 8.5Arms
  • 29x105x78mm (1.14x4.13x3.07in)
OS1098 OS1098
  • Supply from 45Vdc up to 240Vdc
  • Current up to 10Arms
  • 29x105x78mm (1.14x4.13x3.07in)
OS1041A OS1041A
  • Supply from 16Vac up to 36Vac
  • Current up to 1.4Arms
  • 22x105x78mm (0.87x4.13x3.07in)
OS1044A OS1044A
  • Supply from 18Vac up to 36Vac
  • Current up to 4Arms
  • 22x105x78mm (0.87x4.13x3.07in)
OS1073A OS1073A
  • Supply from 18Vac up to 36Vac
  • Current up to 3Arms
  • 22x105x78mm (0.87x4.13x3.07in)
