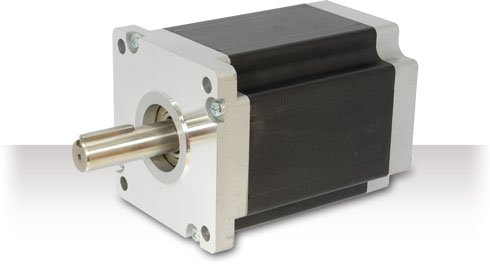

With a static torque up to 21Nm (2974oz-In) the
NEMA42 stepper motors are used successfully in the most demanding applications.
Supplied with 19mm diameter shaft and key, … »read more
Technical Data
| Bipolar Holding Torque | 21Nm (2974oz-in) |
| Bipolar Phase Current | 10Arms parallel connection
5Arms series connection |
| Rotor Inertia | 11000g-cm2 (60.06oz-in2) |
| Length | 150mm (5.91inches) |
| Weight | 8500g (300oz) |
| Flange | NEMA 42 110x110mm (4.33x4.33inches) |
| Leads Number | 8 |
| Full step angle | 1.8° |
Torque curve
The graph display is reserved for registered users only.
Please register or login to display graphs.
Benefits
- High torque density
- Optimized for microstepping drive
- Excellent dynamic performance
- Double shaft versions available
- Rear ground screw
