The family of

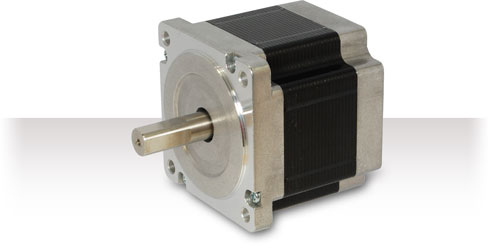

NEMA34 stepper motors spread over six different stator lengths.
The maximum torque exceeds 4.4Nm (623oz-In) placing this series of stepper motors among the … »read more
Technical Data
| Bipolar Holding Torque | 4.4Nm (623oz-in) |
| Bipolar Phase Current | 5.6Arms parallel connection
2.8Arms series connection |
| Rotor Inertia | 1050g-cm2 (5.73oz-in2) |
| Length | 78mm (3.07inches) |
| Weight | 2300g (81oz) |
| Flange | NEMA 34 86x86mm (3.39x3.39inches) |
| Leads Number | 8 |
| Full step angle | 1.8° |
Torque curve
The graph display is reserved for registered users only.
Please register or login to display graphs.
Benefits
- High torque density
- Optimized for microstepping drive
- Excellent dynamic performance
- Double shaft versions available
- Rear ground screw
