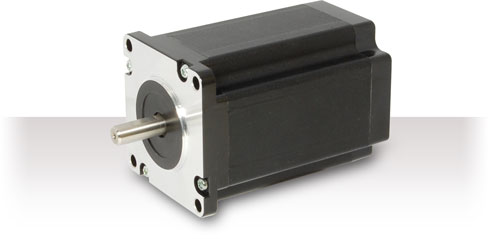

A series of stepper motors with flange 60mmx60mm (also known as NEMA24), slightly larger than the most common NEMA23.
The larger internal rotor allows to improve the performance of the application … »read more
Technical Data
| Bipolar Holding Torque | 3.2Nm (453oz-in) |
| Bipolar Phase Current | 4.2Arms |
| Rotor Inertia | 800g-cm2 (4.37oz-in2) |
| Length | 89mm (3.5inches) |
| Weight | 1400g (49.38oz) |
| Flange | NEMA 24 60x60mm (2.36x2.36inches) |
| Leads Number | 4 |
| Full step angle | 1.8° |
Torque curve
The graph display is reserved for registered users only.
Please register or login to display graphs.
Benefits
- High torque density
- Optimized for microstepping drive
- Excellent dynamic performance
- Double shaft versions available
