M1233064

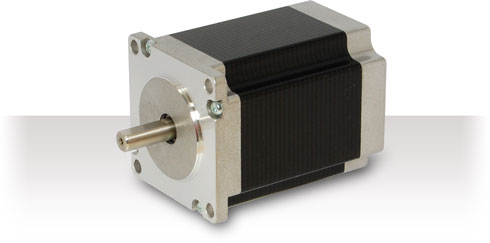

NEMA23 Stepper Motor 1.8Nm (255oz-in) 6Arms L=76mm (2.99in)

Documents

Related Products

DS1048 DS1048
  • Supply from 20Vdc up to 50Vdc
  • Current up to 8Arms
  • 100x35x119mm (3.94x1.38x4.69in)
LS1076 LS1076
  • Supply from 24Vdc up to 90Vdc
  • Current up to 6Arms
  • 78x110x25mm (3.07x4.33x0.98in)
DS1076A DS1076A
  • Supply from 20Vac up to 65Vac
  • Current up to 6Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS3048 DS3048
  • Supply from 20Vdc up to 50Vdc
  • Current up to 8Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS3076A DS3076A
  • Supply from 20Vac up to 65Vac
  • Current up to 6Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5048 DS5048
  • Modbus-RTU fieldbus RS485
  • Supply from 20Vdc up to 50Vdc
  • Current up to 8Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5076A DS5076A
  • Modbus-RTU fieldbus RS485
  • Supply from 20Vac up to 65Vac
  • Current up to 6Arms
  • 100x35x119mm (3.94x1.38x4.69in)
USD10606 USD10606
  • Power supply from 22Vdc up to 85Vdc
  • Current up to 7.5Apk
  • STEP and DIRECTION control
  • Mictrostepping with change of the resolution on the fly
USD50606 USD50606
  • Power supply from 22Vdc up to 85Vdc
  • Current up to 7.5Apk
  • Integrated Indexer serially controllable
  • Mictrostepping with change of the resolution on the fly
M1233064 NEMA23 stepper motors in seven different power sizes with torque up to 1.8Nm (255oz-In) always maintaining the flange in standard NEMA23.

Some models are offered with two … »read more

Technical Data

Bipolar Holding Torque 1.8Nm (255oz-in)
Bipolar Phase Current 6Arms
Rotor Inertia 440g-cm2 (2.4oz-in2)
Length 76mm (2.99inches)
Weight 1050g (37.03oz)
Flange NEMA 23 56.4x56.4mm (2.22x2.22inches)
Leads Number 4
Full step angle 1.8°

Torque curve

The graph display is reserved for registered users only.
Please register or login to display graphs.

Benefits

  • High torque density
  • Optimized for microstepping drive
  • Excellent dynamic performance
  • Double shaft versions available
