M1233031

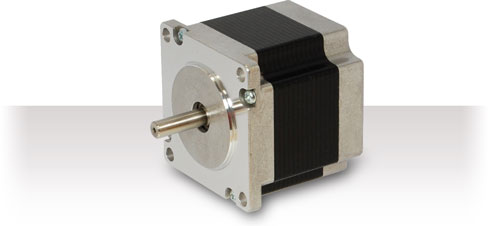

NEMA23 Stepper Motor 1Nm (142oz-in) 0.62Arms L=51mm (2in)

Documents

Related Products

DS1041 DS1041
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 100x17.5x119mm (3.94x0.69x4.69in)
LS1041 LS1041
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 78x110x25mm (3.07x4.33x0.98in)
DS3041 DS3041
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 100x17.5x119mm (3.94x0.69x4.69in)
DS5041 DS5041
  • Modbus-RTU fieldbus RS485
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 100x22.7x119mm (3.94x0.89x4.69in)
USD10361 USD10361
  • Power supply from 12Vdc up to 42Vdc
  • Current up to 1.2Apk
  • STEP and DIRECTION control
  • Mictrostepping with change of the resolution on the fly
USD50361 USD50361
  • Power supply from 12Vdc up to 42Vdc
  • Current up to 1.2Apk
  • Integrated Indexer serially controllable
  • Mictrostepping with change of the resolution on the fly
M1233031 NEMA23 stepper motors in seven different power sizes with torque up to 1Nm (142oz-In) always maintaining the flange in standard NEMA23.

Some models are offered with two … »read more

Technical Data

Bipolar Holding Torque 1Nm (142oz-in)
Bipolar Phase Current 0.62Arms
Rotor Inertia 230g-cm2 (1.26oz-in2)
Length 51mm (2inches)
Weight 620g (21.87oz)
Flange NEMA 23 56.4x56.4mm (2.22x2.22inches)
Leads Number 4
Full step angle 1.8°

Torque curve

The graph display is reserved for registered users only.
Please register or login to display graphs.

Benefits

  • High torque density
  • Optimized for microstepping drive
  • Excellent dynamic performance
  • Double shaft versions available
