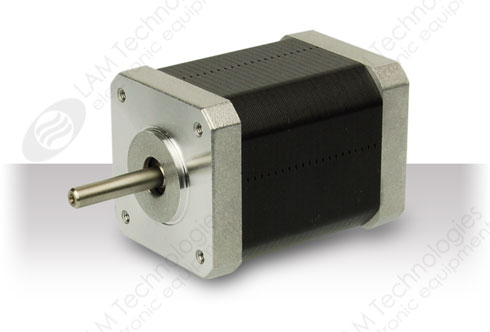

M1173051

NEMA17 Stepper Motor 0.75Nm (106oz-in) 2.5Arms L=60mm (2.36in)

Documents

Related Products

DS1044 DS1044
  • Supply from 20Vdc up to 50Vdc
  • Current up to 4Arms
  • 100x17.5x119mm (3.94x0.69x4.69in)
LS1044 LS1044
  • Supply from 20Vdc up to 50Vdc
  • Current up to 4Arms
  • 78x110x25mm (3.07x4.33x0.98in)
DS3044 DS3044
  • Supply from 20Vdc up to 50Vdc
  • Current up to 4Arms
  • 100x17.5x119mm (3.94x0.69x4.69in)
DS5044 DS5044
  • Modbus-RTU fieldbus RS485
  • Supply from 20Vdc up to 50Vdc
  • Current up to 4Arms
  • 100x22.7x119mm (3.94x0.69x4.69in)
USD10362 USD10362
  • Power supply from 12Vdc up to 42Vdc
  • Current up to 2.4Apk
  • STEP and DIRECTION control
  • Mictrostepping with change of the resolution on the fly
USD50362 USD50362
  • Power supply from 12Vdc up to 42Vdc
  • Current up to 2.4Apk
  • Integrated Indexer serially controllable
  • Mictrostepping with change of the resolution on the fly
M1173051 Three different sizes of NEMA17 stepper motors able to provide holding torque of more than 0.75Nm (106oz-In).

Upon request it is possible to realize versions with double … »read more

Technical Data

Bipolar Holding Torque 0.75Nm (106oz-in)
Bipolar Phase Current 2.5Arms
Rotor Inertia 110g-cm2 (0.601oz-in2)
Length 60mm (2.36inches)
Weight 490g (17.28oz)
Flange NEMA 17 42.3x42.3mm (1.67x1.67inches)
Leads Number 4
Full step angle 1.8°

Torque curve

The graph display is reserved for registered users only.
Please register or login to display graphs.

Benefits

  • High torque density
  • Optimized for microstepping drive
  • Excellent dynamic performance
  • Double shaft versions available
