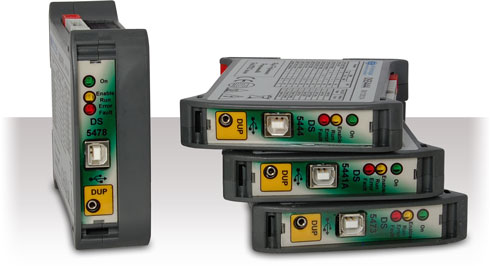

DS54 series The DS54 stepper motor drives series is user programmable and equipped with Modbus-RTU fieldbus and communication interface USB (for the RS485 interface see the DS50 series and the DS52 series for the RS232 interface).

The integrated USB communication interface makes these products the best choice for all PC-based applications (such as biochemical equipments, vending machines, visions systems, pick and place, etc.).

The drives supplied with the product allow to use it both in Windows (98, 98SE, ME, XP, Vista, Windows 7 32bit or 64bit) and Linux.

DS5x Family Overview

The bipolar stepper motor drives belonging to the DS5x series are provided with Fieldbus in standard Modbus-RTU and communication interface RS485 (»read more

Products

DS5441 DS5441
  • Modbus-RTU fieldbus USB
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 100x22.7x119mm (3.94x0.89x4.69in)
DS5444 DS5444
  • Modbus-RTU fieldbus USB
  • Supply from 20Vdc up to 50Vdc
  • Current up to 4Arms
  • 100x22.7x119mm (3.94x0.69x4.69in)
DS5448 DS5448
  • Modbus-RTU fieldbus USB
  • Supply from 20Vdc up to 50Vdc
  • Current up to 8Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5473 DS5473
  • Modbus-RTU fieldbus USB
  • Supply from 24Vdc up to 90Vdc
  • Current up to 3Arms
  • 100x22.7x119mm (3.94x0.89x4.69in)
DS5476 DS5476
  • Modbus-RTU fieldbus USB
  • Supply from 24Vdc up to 90Vdc
  • Current up to 6Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5478 DS5478
  • Modbus-RTU fieldbus USB
  • Supply from 24Vdc up to 90Vdc
  • Current up to 10Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5484 DS5484
  • Modbus-RTU fieldbus USB
  • Supply from 45Vdc up to 160Vdc
  • Current up to 4Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5487 DS5487
  • Modbus-RTU fieldbus USB
  • Supply from 45Vdc up to 160Vdc
  • Current up to 8.5Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5498 DS5498
  • Modbus-RTU fieldbus USB
  • Supply from 45Vdc up to 240Vdc
  • Current up to 10Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5441A DS5441A
  • Modbus-RTU fieldbus USB
  • Supply from 16Vac up to 36Vac
  • Current up to 1.4Arms
  • 100x22.7x119mm (3.94x0.89x4.69in)
DS5444A DS5444A
  • Modbus-RTU fieldbus USB
  • Supply from 18Vac up to 36Vac
  • Current up to 4Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5448A DS5448A
  • Modbus-RTU fieldbus USB
  • Supply from 18Vac up to 36Vac
  • Current up to 8Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5473A DS5473A
  • Modbus-RTU fieldbus USB
  • Supply from 20Vac up to 65Vac
  • Current up to 3Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5476A DS5476A
  • Modbus-RTU fieldbus USB
  • Supply from 20Vac up to 65Vac
  • Current up to 6Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5478A DS5478A
  • Modbus-RTU fieldbus USB
  • Supply from 20Vac up to 65Vac
  • Current up to 10Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5484A DS5484A
  • Modbus-RTU fieldbus USB
  • Supply from 35Vac up to 115Vac
  • Current up to 4Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5487A DS5487A
  • Modbus-RTU fieldbus USB
  • Supply from 35Vac up to 115Vac
  • Current up to 8.5Arms
  • 100x35x119mm (3.94x1.38x4.69in)
