DS50 series

Programmable Stepper Motor Controller with Modbus-RTU RS485 Fieldbus

Documents

Software, Driver

Related Products

UDP30 UDP30
  • Galvanic isolation
  • Drivers from Windows 98SE to Windows 10 32bit or 64bit
  • Powered via USB port
UDP Commander UDP Commander
  • Running under Windows
  • Simple and intuitive use
  • Single tool for all drives xS10, DS30 and DS5x
  • Free!
DP1651 DP1651
  • Single or three phase input up to 42Vac
  • Output up to 60Vdc
  • Current up to 16Arms
DP1652 DP1652
  • Braking resistor control
  • Single or three phase input up to 42Vac
  • Output up to 60Vdc
  • Current up to 16Arms

Matching motors

NEMA 17 NEMA 17
  • NEMA 17 standard flange
  • Torque up to 0.75Nm (106oz-In)
  • Current from 0.7Arms up to 2.5Arms
NEMA 23 NEMA 23
  • NEMA 23 standard flange
  • Torque up to 3Nm (425oz-In)
  • Current from 0.62Arms up to 6Arms
NEMA 34 NEMA 34
  • NEMA 34 standard flange
  • Torque up to 12Nm (1416oz-In)
  • Current from 2.8Arms up to 10Arms
NEMA 42 NEMA 42
  • NEMA 42 standard flange
  • Torque up to 29Nm (4107oz-In)
  • Current from 5Arms up to 10Arms

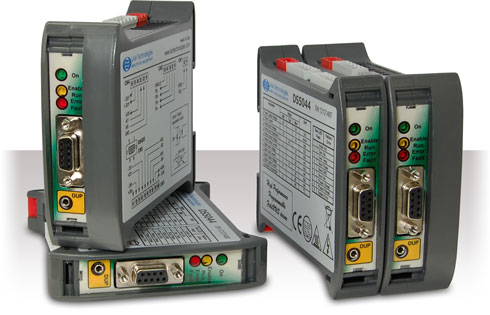

DS50 series

The DS50 stepper motor programmable drives are equipped with Modbus-RTU fieldbus and communication interface RS485 (for the RS232 interface see the DS52 series and the DS54 series for the USB interface).

DS5x Family Overview

The bipolar stepper motor drives belonging to the DS5x series are provided with Fieldbus in standard Modbus-RTU and communication interface RS485 ( … »read more

Products

DS5041 DS5041
  • Modbus-RTU fieldbus RS485
  • Supply from 18Vdc up to 50Vdc
  • Current up to 1.4Arms
  • 100x22.7x119mm (3.94x0.89x4.69in)
DS5044 DS5044
  • Modbus-RTU fieldbus RS485
  • Supply from 20Vdc up to 50Vdc
  • Current up to 4Arms
  • 100x22.7x119mm (3.94x0.69x4.69in)
DS5048 DS5048
  • Modbus-RTU fieldbus RS485
  • Supply from 20Vdc up to 50Vdc
  • Current up to 8Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5073 DS5073
  • Modbus-RTU fieldbus RS485
  • Supply from 24Vdc up to 90Vdc
  • Current up to 3Arms
  • 100x22.7x119mm (3.94x0.89x4.69in)
DS5076 DS5076
  • Modbus-RTU fieldbus RS485
  • Supply from 24Vdc up to 90Vdc
  • Current up to 6Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5078 DS5078
  • Modbus-RTU fieldbus RS485
  • Supply from 24Vdc up to 90Vdc
  • Current up to 10Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5084 DS5084
  • Modbus-RTU fieldbus RS485
  • Supply from 45Vdc up to 160Vdc
  • Current up to 4Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5087 DS5087
  • Modbus-RTU fieldbus RS485
  • Supply from 45Vdc up to 160Vdc
  • Current up to 8.5Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5098 DS5098
  • Modbus-RTU fieldbus RS485
  • Supply from 45Vdc up to 240Vdc
  • Current up to 10Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5041A DS5041A
  • Modbus-RTU fieldbus RS485
  • Supply from 16Vac up to 36Vac
  • Current up to 1.4Arms
  • 100x22.7x119mm (3.94x0.89x4.69in)
DS5044A DS5044A
  • Modbus-RTU fieldbus RS485
  • Supply from 18Vac up to 36Vac
  • Current up to 4Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5048A DS5048A
  • Modbus-RTU fieldbus RS485
  • Supply from 18Vac up to 36Vac
  • Current up to 8Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5073A DS5073A
  • Modbus-RTU fieldbus RS485
  • Supply from 20Vac up to 65Vac
  • Current up to 3Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5076A DS5076A
  • Modbus-RTU fieldbus RS485
  • Supply from 20Vac up to 65Vac
  • Current up to 6Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5078A DS5078A
  • Modbus-RTU fieldbus RS485
  • Supply from 20Vac up to 65Vac
  • Current up to 10Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5084A DS5084A
  • Modbus-RTU fieldbus RS485
  • Supply from 35Vac up to 115Vac
  • Current up to 4Arms
  • 100x35x119mm (3.94x1.38x4.69in)
DS5087A DS5087A
  • Modbus-RTU fieldbus RS485
  • Supply from 35Vac up to 115Vac
  • Current up to 8.5Arms
  • 100x35x119mm (3.94x1.38x4.69in)
