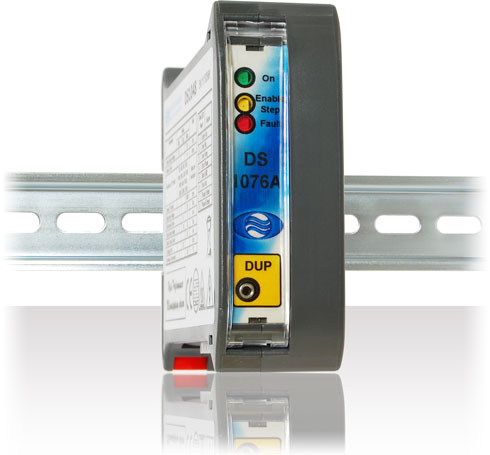

The DS10 series is designed for DIN rail mounting and can be installed in the cabinet in few seconds.
The connection to the motor, to the logic and power signals are realized by useful removable … »read more
Technical Data
| Power Supply Voltage | From 20Vac up to 65Vac |
| Phase Current | From 2Arms up to 6Arms in increments of 0.1Arms |
| Control Mode | Step and Direction. Start/Stop |
| Digital Inputs | 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST
Operating from 3V up to 28V at constant current
Each one NPN, PNP or Line Drive compatible |
| Step subdivision | Microstepping. Selectable from full step to 1/128 step |
| STEP Max Frequency | 300KHz |
| Protections, Alarms and Diagnostics | Over and under voltage, thermal, Phase Motor interrupted
Short circuit phase to phase, phase to ground, phase-supply
Univocal indication for each anomaly
|
| Connections | By functional removable terminal block. Section of cable up to AWG14 |
| Dimensions | 100(H) x 35(L) x 119(W) mm
3.94(H) x 1.38(L) x 4.69(W) inches |
| Weight | 330g
11.2oz |
Benefits
- AC power supply
- Fast mounting on DIN rail
- Compact size
- Integrated oscillator
- Gate function for the control of several drives with a single STEP source
- Resolution up to 25600 steps/rev
- Damping of resonances
- Power output stage at high efficiency
- Digital I/O signal conditioning
- IP20 protection grade
