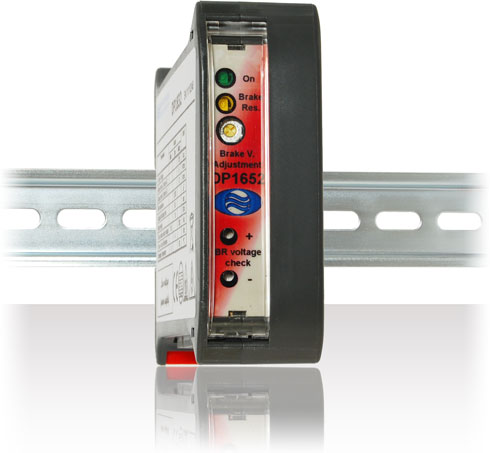

The DP1xx1/2 unregulated power supplies series consists of 6 models, different in voltage, current and functionality.
Designed to be combined with the DS series stepper motor drives, prove to be a … »read more
Technical Data
| Input voltage | From 20Vac up to 42Vac single phase or three phase |
| Output Voltage | Da 28Vdc a 60Vdc |
| Output Current | 16Arms with three phase input
12Arms with single phase input |
| Braking Resistor Threshold Voltage | Adjustable from 20Vdc up to 60Vdc |
| Connections | By functional removable terminal block. Section of cable up to AWG14 |
| Dimensions | 100(H) x 35(L) x 119(W) mm
3.94(H) x 1.38(L) x 4.69(W) inches |
| Weight | 350g
12.3oz |
Benefits
- Braking resistor control
- Single or three phase input
- Braking resistor diagnostic
- Integrated capacitors discharge circuit
- Compact size
- Fast mounting on DIN rail
- IP20 protection grade
- Low cost
