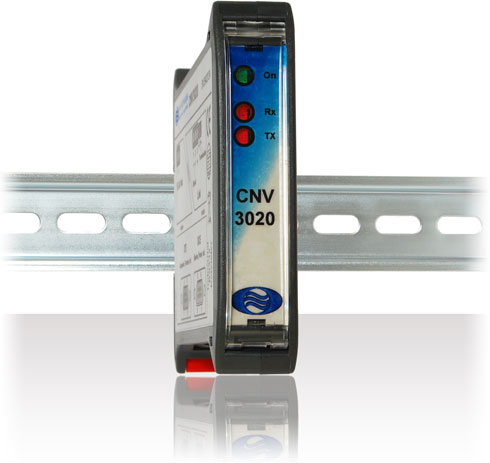

The CNV3020 line extender allows to transmit and to receive at very long distances all the hardware signals typical of a standard RS232 serial port, including the control signals (RTS, CTS, ecc.), using only a simple twisted pair cable for the wiring.
Family Overview
The CNV30 serial converters are designed for installation in industrial environments and realized with digital technology to achieve high and constant performances. Of compact
… »read more Technical Data
| Power Supply Voltage | From 10Vdc up to 28Vdc |
| Remoted signals | All (RX, TX, RTS, CTS, DSR, DCD, DTR, RI) |
| Maximum distance | 500m |
| Maximum speed | 57600baud |
| Led indicator | Power Presence
Data Reception
Data Transmission |
| DTE RS232 port connector | DB-9 female |
| DCE RS232 port connector | DB-9 male |
| Dimensions | 100(H) x 22.7(L) x 119(W) mm
3.94(H) x 0.89(L) x 4.69(W) inches |
| Weight | 110g
3.9oz |
Benefits
- Triple insulation (between each port and the power supply)
- Extension of all RS232 controll signals (RX, TX, RTS, CTS, DSR, DCD, DTR, RI)
- No configuration required
- Separate RS232 connectors for DTE and DCE
- Integrated protection to electrostatic charges up to 15KV
- Fully digital implementation
- Fast mounting on DIN rail
