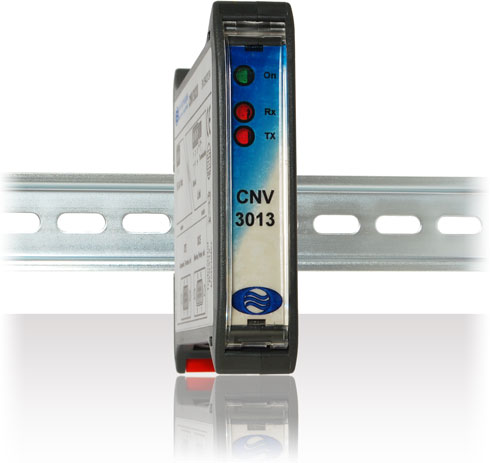

The CNV3013 interface realizes a RS232 asynchronous serial line using the USB port of a PC.
Thanks to the software driver supplied with the interface, this is seen by the operating system as a standard system serial port.
The galvanic isolation bewteen the USB port and the RS232 port ensures an high level of noise immunity and removes the problems associated with ground loops.
Family Overview
The CNV30 serial converters are designed for installation in industrial environments and realized with digital technology to achieve high and constant performances. Of compact
… »read more Technical Data
| Supported OS | Windows 98, SE, Me, 2000, XP, Vista, Windows 7, Windows 8, Windows 10 32bit and 64bit
Linux (kernel version 2.4.0 or higher), Android |
| Power supply | Drawn from the USB port |
| Supported baud rates | 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 14400, 19200, 38400, 57600, 115200, 230400 |
| Supported data format | 7bit, 8bit |
| Supported parity | None, Even, Odd, Mark, Space |
| Supported stop bits | 1bit, 2bit |
| Flow Control | None, Xon / Xoff, Hardware |
| Led indicator | Power Presence
Data Reception
Data Transmission |
| DTE RS232 port connector | DB-9 female |
| DCE RS232 port connector | DB-9 male |
| USB connector | Type B |
| Dimensions | 100(H) x 22.7(L) x 119(W) mm
3.94(H) x 0.89(L) x 4.69(W) inches |
| Weight | 110g
3.9oz |
Benefits
- No external power required
- Isolated communication ports
- Integrated protection to electrostatic charges up to 15KV
- Separate RS232 connectors for DTE and DCE
- Drivers for Windows (from 98SE up to Windows 10 32bit or 64bit) and Linux
- Fully digital implementation
- Fast mounting on DIN rail
