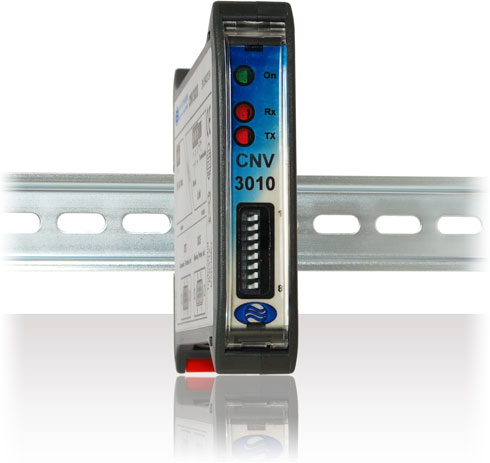

The CNV3010 converter transforms data flows from RS232 to RS485 and vice versa.
Thanks to the many possibilities of configuration it is possible to adapt the CNV3010 to a large amount of different uses.
Family Overview
The CNV30 serial converters are designed for installation in industrial environments and realized with digital technology to achieve high and constant performances. Of compact
… »read more Technical Data
| Power Supply Voltage | From 10Vdc up to 28Vdc |
| Supported baud rates | Automatic, 110, 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400 |
| Data format type supported | Automatic, 7bit, 8bit, 9bit |
| Parity type supported | Automatic, Nessuna, Pari, Dispari |
| Stop Bit number supported | Automatic, 1bit, 2bit |
| Data flow control (Rx / Tx) | Automatic or manual by one of the following control signals: CTS, DSR, DCD, RI, RTS, DTR |
| Special Features | Yes/No Null-modem configuration
Yes/No Echo of characters transmitted |
| Termination resistor | Yes, configurable |
| Bias resistors | Yes, configurable |
| Led indicator | Power Presence
Data Reception
Data Transmission |
| DTE RS232 port connector | DB-9 female |
| DCE RS232 port connector | DB-9 male |
| Power supply connector | 2-pins removable terminal block
Section of cable up to AWG14 |
| RS485 connector | 3-pins removable terminal block
Section of cable up to AWG14 |
| Dimensions | 100(H) x 22.7(L) x 119(W) mm
3.94(H) x 0.89(L) x 4.69(W) inches |
| Weight | 110g
3.9oz |
Benefits
- Triple insulation (between each port and the power supply)
- Auto Baud Rate for the automatic and dynamic detection of rate and format transmission
- Separate RS232 connectors for DTE and DCE
- Integrated protection to electrostatic charges up to 15KV
- Fully digital implementation
- Fast mounting on DIN rail
